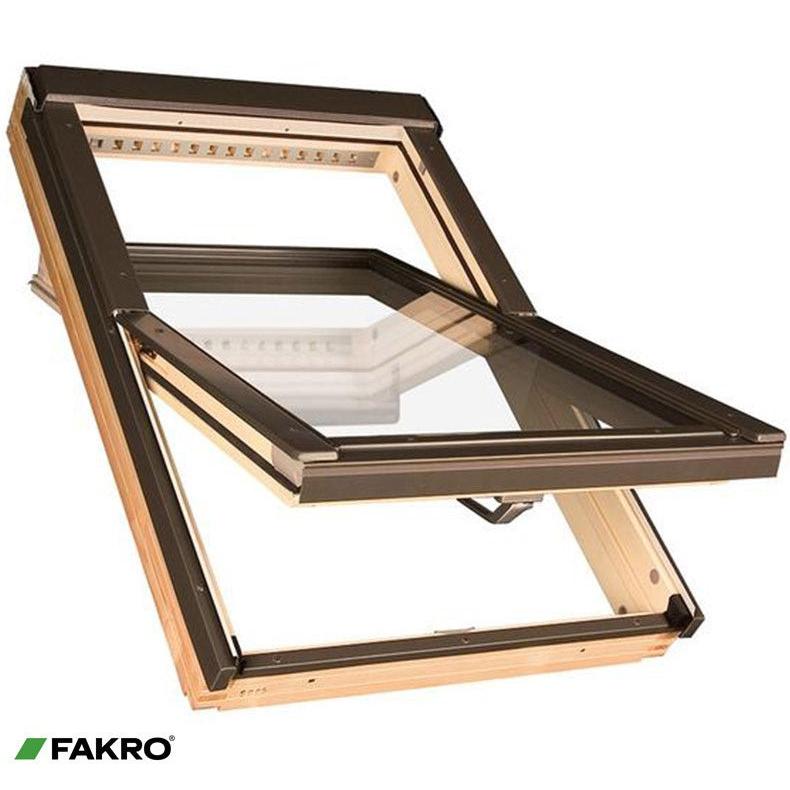

Fakro Pine Centre Pivot Window 55 x 78cm

Fakro Pine centre pivot window 55cm x 78cm

FSC Certified BBA Approved (02/3944)

Easy to fit with universal bracket fix system

Semi-automatic pressure ventilation V40P to prevent wind gusting

topSafe security and safety offering reinforced hinge and keep together with a steel slat to the lower part of the sash to achieve at least class III safety as per EN13049

External aluminium colour reference RAL7022

Natural wood frame. Internal finish 2 layers of clear lacquer

Bottom placed handle with 2 micro opening positions

Glass construction 4H-Tg15Ar-33.2mm overall thickness of 26mm with an anti-burglary class of laminate 33.2 (class p2a)

External tempered glass, warm TGI spacer filled with inert argon gas

Internal pane has two 3mm thick sheets of glass with layer of PVB plastic membrane between them

On the inner side of the laminated glass there is a low emission coating producing a U-Value of 1.2W/mK (glass U-Value 1.0W/mK)

Acoustic rating 35Db (-1.-3)|Can be used on roofs with pitches between 15-90FSC Certified|BBA Approved (02/3944)|Semi-automatic pressure ventilation V40P to prevent wind gusting|topSafe security and safety offering reinforced hinge and keep together with a steel slat to the lower part of the sash to achieve at least class III safety as per EN13049

External aluminium colour reference RAL7022

Natural wood frame. Internal finish 2 layers of clear lacquer

Bottom placed handle with 2 micro opening positions

Glass construction 4H-Tg15Ar-33.2mm overall thickness of 26mm with an anti-burglary class of laminate 33.2 (class p2a)

External tempered glass, warm TGI spacer filled with inert argon gas

Internal pane has two 3mm thick sheets of glass with layer of PVB plastic membrane between them

On the inner side of the laminated glass there is a low emission coating producing a U-Value of 1.2W/mK (glass U-Value 1.0W/mK)|Acoustic rating 35Db (-1.-3)|Can be used on roofs with pitches between 15-90
